How to Measure Non-Standard Window Openings

Table of Contents

• Why Measuring Non-Standard Window Openings Correctly Matters
• Essential Tools for Measuring Window Openings
• Step-by-Step: How to Measure Window Reveals and Dimensions
  • Measuring Width at Three Points
  • Measuring Height at Three Points
  • Measuring Depth and Reveal
• Accounting for Clearance and Tolerances in Window Fitting
• Measuring Irregular and Non-Standard Shapes
  • Arched and Circular Window Openings
  • Bay Windows and Angled Reveals
• Recording and Verifying Your Measurements
• Common Mistakes to Avoid When Measuring
• Conclusion

Last Updated: August 13, 2026

Why Measuring Non-Standard Window Openings Correctly Matters

Getting measurements right for non-standard window openings avoids costly mistakes that surface months after installation. A window that doesn't fit properly creates drafts, water ingress, and structural issues. This is especially critical for Victorian terraces, period properties, and modern extensions with irregular geometry.

Standard rectangular openings follow predictable patterns. Non-standard shapes, arched windows, bay windows, angled reveals, require a different approach entirely. At Arborfield Joinery, we've worked with hundreds of properties where measurements were off by just a few millimetres, yet those gaps would have compromised the entire installation.

Unlike stock windows, custom-made units can't be easily adjusted on site. Your measurements become the blueprint for manufacturing. If the reveal depth is recorded incorrectly or wall thickness is missed, the finished window either won't fit or will fit with unacceptable gaps. This guide walks you through the exact process professionals use to measure non-standard window openings accurately, covering everything from basic rectangular shapes to complex irregular geometries.

Essential Tools for Measuring Window Openings

You don't need expensive equipment, but you do need the right tools for precision beyond eyeballing distances.

Steel measuring tape (5-8 metres): Your primary tool. Cloth or plastic tapes stretch over time and give inconsistent readings. Steel holds its shape and provides reliable measurements.

Spirit level: Critical for checking whether the sill and lintel are truly level and plumb. Non-standard openings often sit at angles or on uneven surfaces. A spirit level reveals whether you're working with a true opening or one that's twisted or sloping.

Measuring rule or straightedge: A rigid 1-metre rule checks for dips, bulges, or irregular surfaces within the opening. Many older properties have walls that aren't flat. A straightedge reveals these imperfections, which you'll need to account for during installation.

Laser measure: For multiple non-standard openings or larger projects, a laser measure saves time and improves accuracy by eliminating tape sag and human error.

Notebook and pencil: Record every measurement as you take it. Sketch the opening shape, label all dimensions, and note irregularities. A digital photo of your notes serves as backup.

Flexible measuring tape or profile gauge: For arched or curved openings, a flexible tape captures the exact curve that standard rigid tapes cannot follow accurately.

Step-by-Step: How to Measure Window Reveals and Dimensions

The reveal is the distance from the outer face of the wall to the inner face of the window frame, how deep the window sits within the opening. Understanding reveals is fundamental to measuring non-standard window openings correctly.

Measuring Width at Three Points

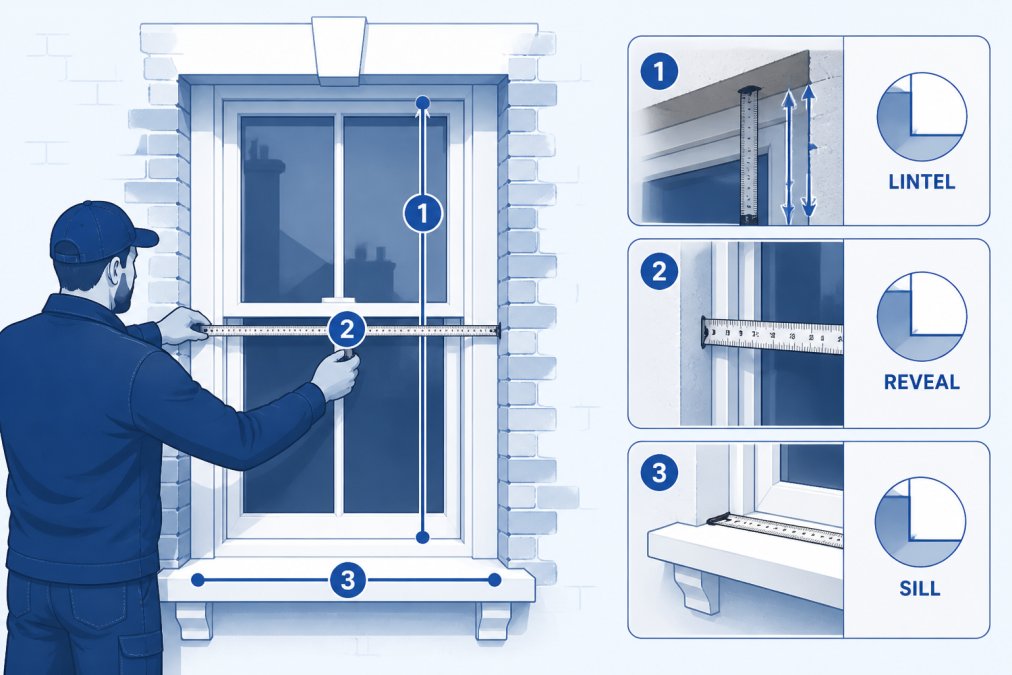

Width measurements must be taken at three distinct points: top, middle, and bottom of the opening. This reveals whether the opening is perfectly rectangular or tapered.

Measure the internal width from left reveal to right reveal at the lintel level (the horizontal support above the window). Record this as "Width Top." Use your spirit level to confirm you're measuring horizontally.

Move to the middle of the opening and measure the same distance. Record as "Width Middle." If this differs from the top measurement, your opening is tapered.

Measure at the bottom, at sill level. Record as "Width Bottom." Compare all three measurements. If they're identical, you have a true rectangular opening. If they vary, document the differences precisely, your window manufacturer needs this information to create a frame that accommodates the taper.

Measuring Height at Three Points

Height measurements follow the same principle: take readings at left, centre, and right positions.

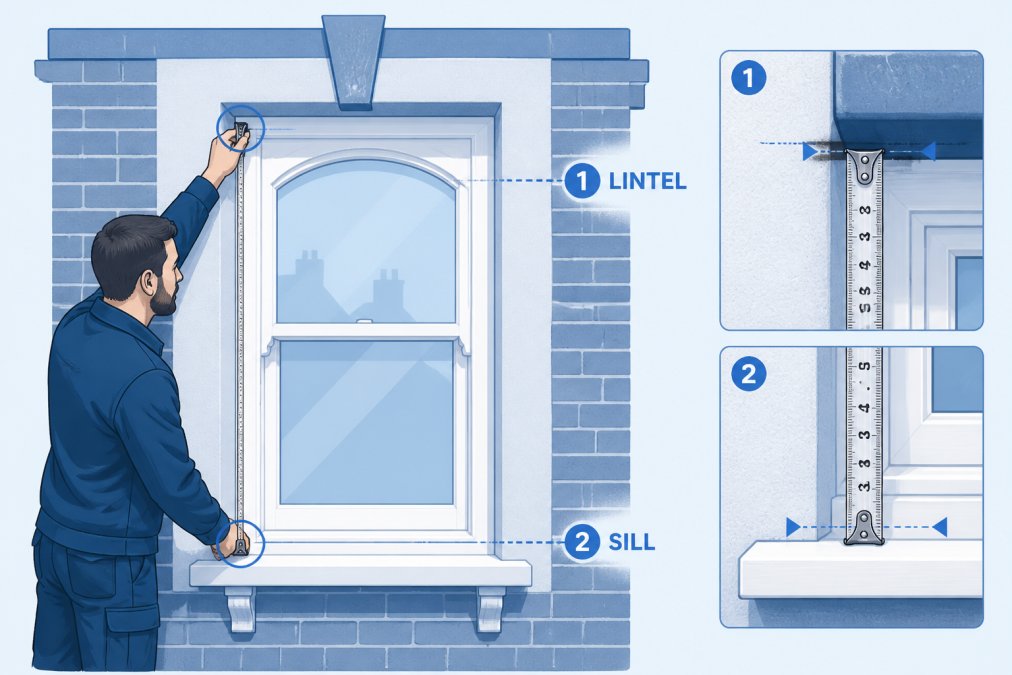

Measure the height from sill to lintel on the left side. Record as "Height Left." Use your spirit level to confirm vertical plumb.

Move to the centre and measure again. Record as "Height Centre."

Measure on the right side. Record as "Height Right." Non-standard openings frequently have height variations. If all three heights differ, the opening is out of plumb, leaning, or twisted, common in period properties and requiring careful attention during installation.

Measuring Depth and Reveal

Measure from the outer face of the external wall to the inner face of the internal wall. This is your total depth and defines how much space you have for the window frame and installation materials.

Next, measure the reveal on each side: from the outer wall face inward to where the window frame will sit. Record left reveal, centre reveal, and right reveal. Reveals often vary in older properties where walls have been plastered unevenly.

Check the depth at multiple points, top, middle, and bottom. Walls aren't always uniform, and a wall thicker at the top than the bottom changes how your window frame must be positioned.

Accounting for Clearance and Tolerances in Window Fitting

Clearance is the gap between the finished window frame and the opening. Tolerances are the acceptable variations in measurement that won't compromise fit or function.

Building standards typically call for a minimum 5-10mm clearance on all sides, though this varies depending on the window type and installation method. This gap allows for minor variations in the opening, adjustment during installation, and thermal movement of the frame material.

When you measure non-standard window openings, deduct this clearance from your internal measurements before ordering. If your opening width is 1200mm and you need 10mm clearance on each side, your window frame width should be 1180mm.

Tolerances account for measurement uncertainty and minor imperfections. A tolerance of ±2mm is typical for domestic windows. However, non-standard openings often have larger tolerance ranges because they're inherently less precise. Document any irregularities, bulges, dips, or uneven surfaces, and discuss these with your window manufacturer. Always communicate your clearance and tolerance assumptions to the manufacturer to avoid gaps that compromise weather tightness or frames that don't fit.

Measuring Irregular and Non-Standard Shapes

Rectangular openings are straightforward. Irregular shapes demand additional steps and often require specialist equipment or advice.

Shop now! →

Arched and Circular Window Openings

Arched windows appear frequently in period properties and contemporary designs. The challenge is capturing the curve accurately so the window frame can be manufactured to match.

Start by measuring the width at the widest point (typically at the base of the arch) and the height from the base to the highest point of the curve. These define the overall bounding box.

Map the curve using a flexible measuring tape or profile gauge placed against the curve, then transfer this profile to paper or photograph it. Alternatively, take multiple height measurements at regular intervals across the width, for example, on a 1200mm-wide arch, measure at 0mm, 300mm, 600mm, 900mm, and 1200mm. Plot these points to create a curve map the manufacturer can work from.

For circular windows, measure the diameter at multiple angles. A true circle shows the same diameter regardless of angle. If measurements vary, the opening is elliptical, record both the longest and shortest diameters.

Bay Windows and Angled Reveals

Bay windows project outward from the wall, creating complex geometry. Measure each flat section as you would a standard opening: width at three points, height at three points, depth. Record these separately for each face.

Measure the angles where faces meet using a protractor or angle finder. Bay windows commonly sit at 90 degrees (square bay) or 135 degrees (angled bay), but variations exist. The angle affects how window frames are joined at corners.

Measure the overall projection of the bay and the depth variation from top to bottom. A reveal that narrows as it goes up requires a tapered frame, which is more complex to manufacture.

Recording and Verifying Your Measurements

Accurate recording prevents costly errors downstream. Create a sketch of the opening roughly to scale and label all dimensions directly on it. Include notes about irregularities, plaster bulges, uneven surfaces, or damaged areas that might affect installation.

Take photographs from multiple angles, outside, inside, and close-ups of problem areas. Photos provide visual reference that supplements written measurements and help manufacturers identify issues that numbers alone might not convey.

Double-check every measurement. If two readings differ, investigate why. Resolve discrepancies before you leave the site.

Verify that measurements make sense relative to each other. If width varies significantly between top and bottom, confirm this is intentional and not a measurement error.

Transfer measurements to a formal record including property address, date, opening location, and all dimensions with units clearly marked. Add notes about material conditions, access issues, or special requirements. Share this record with your window manufacturer and installer, asking them to confirm the measurements are sound and that they can manufacture and install windows to these specifications.

Common Mistakes to Avoid When Measuring

Measuring only at one point: Taking width or height at just one location misses tapers and irregularities. Always measure at three points.

Forgetting to account for clearance: Ordering a window frame the exact size of the opening leaves no room for installation adjustments or thermal movement. Always deduct clearance before ordering.

Confusing internal and external dimensions: Know which you need and be consistent. For bespoke windows, manufacturers typically work from internal dimensions.

Ignoring wall thickness: The reveal depth depends on wall thickness. Measure actual depth, not assumed depth.

Not checking for plumb and level: A wall that leans or a sill that slopes affects how the window sits and functions. Use a spirit level to identify these issues.

Measuring over damaged areas: If the opening has cracks or spalling plaster, measure the opening as it will be after repair, not as it currently is.

Recording measurements carelessly: Record exact figures. A measurement of 1197mm or 1203mm is more useful than a rounded approximation.

Failing to photograph: Photos create a record that supplements written measurements and are invaluable if questions arise later.

Not discussing non-standard features with the manufacturer: If your opening has an unusual shape, severe taper, or damage affecting installation, mention it explicitly when you order.

Conclusion

Measuring non-standard window openings accurately is the foundation of a successful installation. The process demands attention to detail, the right tools, and a systematic approach. Whether you're working with a Victorian arch, a bay window, or a modern irregular opening, the principles remain the same: measure at multiple points, account for clearance and tolerances, and document everything thoroughly.

At Arborfield Joinery, we work with homeowners, builders, and architects on complex non-standard projects regularly. Our team combines traditional craftsmanship with precision manufacturing to create windows that fit perfectly, even in challenging openings. When you're ready to order bespoke timber windows or doors for your non-standard opening, we'll guide you through the measurement process and ensure your specifications are captured accurately. With over 70 years of experience and full manufacturing facilities on site, we deliver custom joinery solutions that work. Shop now and discover how our expertise can transform your project.
